GK68 Extra Heavy Duty Bag Closing Machine
product description

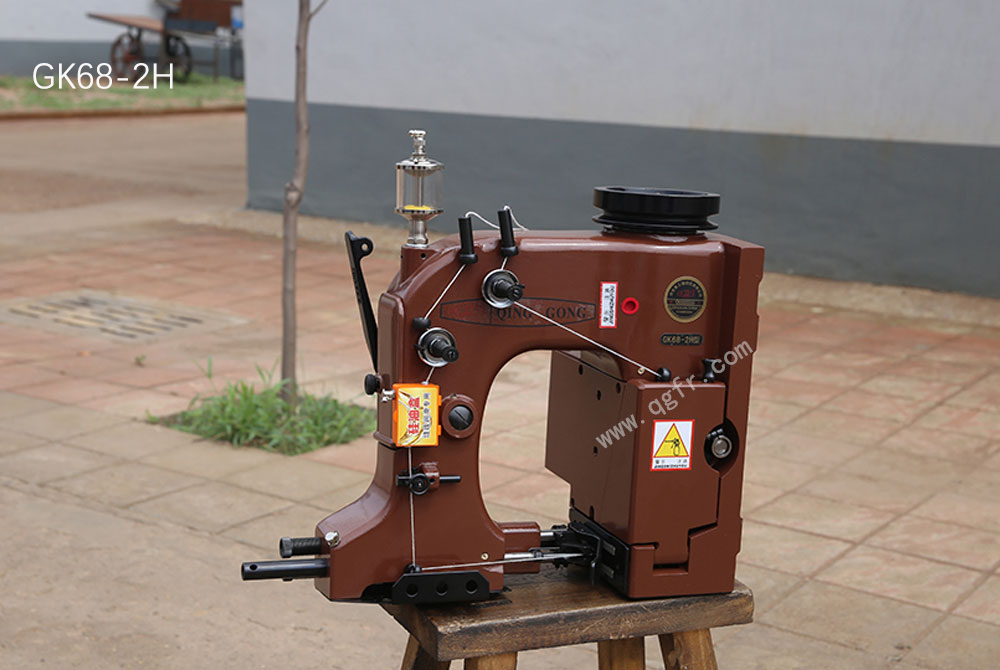

GK68-2H Extra Heavy Duty Bag Closing Machine: Single needle machine for closing of all kinds of filled bags made of extra heavy duty materials such as multi-wall paper, PP/PE woven cloth. It is suitable for film coated bags with “M” edge and bags which is fold over before sewing. The lobbing can be avoided in film coated bags sewing. Equipped with mechanically operated continuously running thread chain cutting knives, the operator has to guide the thread chain between these knives for cutting the thread chain at the end of the seam.
1. Start-stop: actuated by foot switch of column
2. Thread chain cutter: by continuously driven nibbler knives
3. Standard needle: 80800x 250#
4. Stitch length: adjustable from 8-15 mm, standard setting 10 mm
5. Speed: up to 2000 RPM, depending on sewing material and operation
6. Net weight: 35Kg
7. As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.

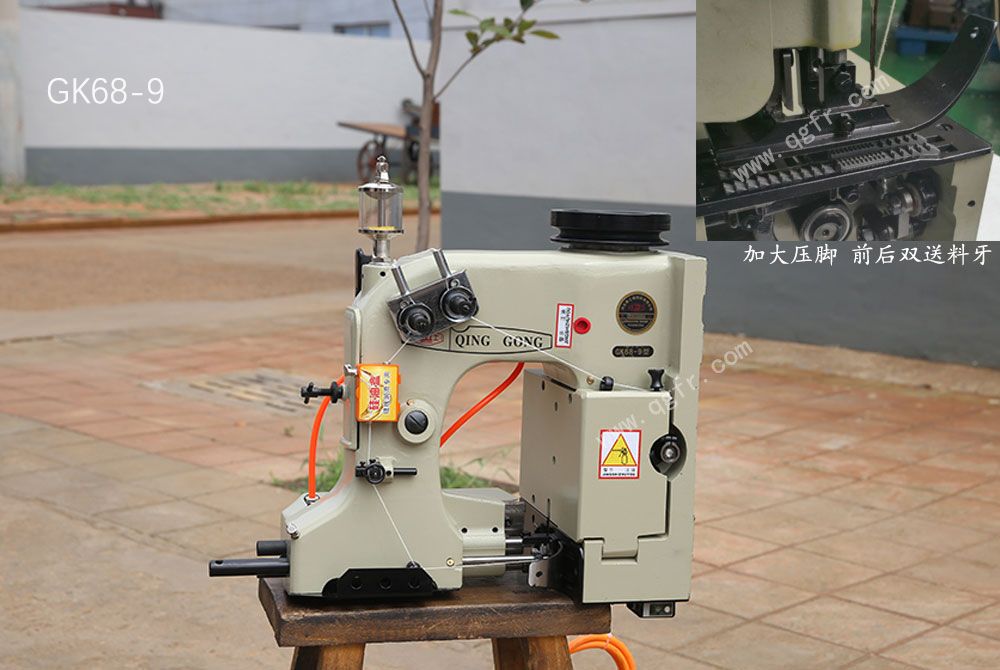

GK68-9 Extra Heavy Duty Automatic Bag Closing Machine: Specially designed for extra heavy film coated bags. With both front and back foot dog and large presser, GK68-9 can effectively avoid lobbing. Equipped with sensors and electro-pneumatically operated scissors which can obtain automatic start-stop and automatic thread cutting. Auto counting the quantity of bags is incidental function.
1. Start-stop: actuated by foot switch of column
2. Thread chain cutter: by continuously driven nibbler knives
3. Standard needle: 80800x 250#
4. Stitch length: adjustable from 8-15 mm, standard setting 10 mm
5. Speed: up to 2000 RPM, depending on sewing material and operation
6. Net weight: 35Kg
7. As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.
GK68-9 Extra Heavy Duty Automatic Bag Closing Machine: Specially designed for extra heavy film coated bags. With both front and back foot dog and large presser, GK68-9 can effectively avoid lobbing. Equipped with sensors and electro-pneumatically operated scissors which can obtain automatic start-stop and automatic thread cutting. Auto counting the quantity of bags is incidental function.
Technical Parameters
| Speed (max.) | 2000r.p.m. |
| Sewing thickness | 10 mm |
| Stitch length | 8-15mm |
| Presser foot lift | 0-16mm |
| Stitch type | double threads chain 401 |
| Thread | cotton, polyester 21S/5,21S/3 |
| Needle type | 80800C×200#-250# |
| Pulley diameter | Φ114mm |
| Net weight | about 35KGS |
| Dimension | 50cm * 50cm * 33cm |
